HYLE Design Team : David Lawlor ( Project Director ) Darragh Murphy  ( Design Architect + Asst. Site ) John Keating ( Site Architect + Design Contributions )



Projects / Civic / Primary Care Centre



Client : Health Services Executive.


Design : HYLE Architects / D. Murphy

Location : Sligo Town, Ireland

Date : 1999 - 2002



Project Backround


The North Western Health Board ( now HSE ) required a purpose built Primary Care Health Centre on a prominent Greenfield Site located on the existing NHWB Campus at Barrack St., Sligo. 3 Local Medical practices re-located to the building to be integrated with HSE community facilities under one roof.


Project Description


The Brief was challenging as the specific needs of 5 end users ( 4 Clients and the Public ) were required to be met within a single building on a constricted sloping site. The Medical Practice Buildings were conceived as fingers on a hand, radiating from a communal Public Foyer which is also accessed by the Community Care Building. Building Area = 4000m2


The entrance to the building is within easy walking distance of the existing HSE Building nearby. Escape Stairs to the Medical Blocks double as coded private access for Doctors from the private parking to the lower part of the Site. Shared Conference rooms, Archive and Storage areas are located at Ground Floor level.

Image description
Image description

Site Location Plan including Linear Park Proposal from 2001


Image description
Image description

Upper Level Plan


Image description
Image description

Lower Level Plan

Image description
Image description

Elevations


Image description

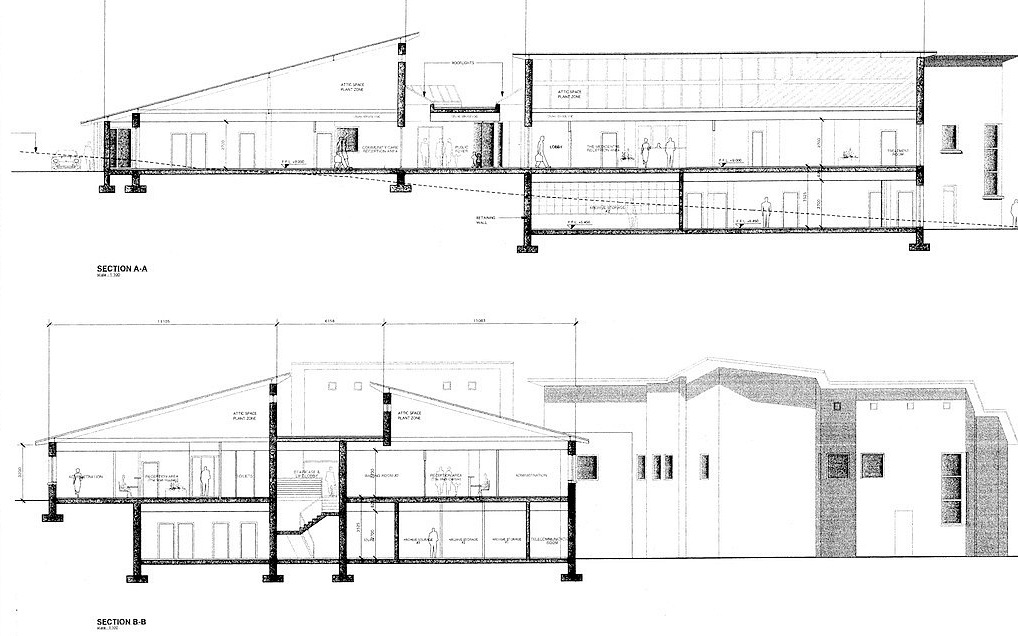

Cross Sections
