Projects / Proposals / New Museum


Location : Customs House Dublin

Client : TBC


Proposal : D. Murphy

Date : 2018



Project Backround


Proposals for Custom House / Four Courts. Adaptive Reuse comparable to the British Museum / Singapore National Art Gallery
















Project Proposition


Collection of the National Museum of Ireland (Archaeology etc) moved to a Larger World Class Museum Experience within a more Prominent Public Setting. Customs House or Four Courts with New Courtyards enclosed by High Tech Glazed Roof Structures.


Aerial View : Map courtesy of Google

Image description

Diagrammatic Cross Section through Proposed Central Court with Glazed Roof + Roof Gardens




Image description

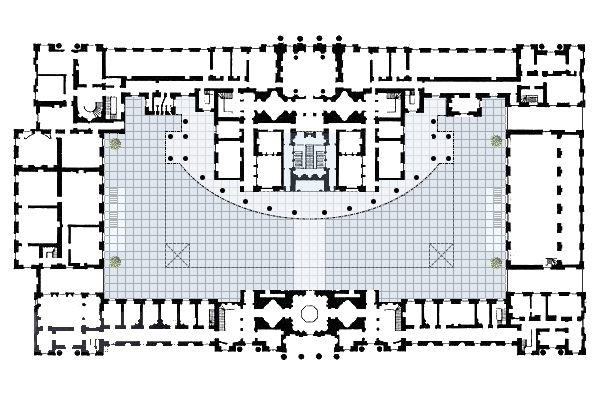

Diagrammatic Plan showing Courtyards , Indicative Supports and Subsequent Circulation


New Courtyards become the Hub of the Museum acting as Civic Living Rooms with cafes and seating. Museum Collection is located within the Existing Georgian Building which is Restored and Upgraded. Public Circulate freely through the Building Wings via the Courtyards. One or more Feature access stairs are proposed. Internal Rooftop opportunities such as Dining , Reading Space or Display are created with the Custom House Dome experienced in Close Proximity.



Diagrid or other High Tech Roof Structure Proposed over Courtyards. Option for a Roof Primarily supported at intervals by Tree shaped Steel Column Structures and spanning up and over Inner Courtyards with minimal Loads on Existing Building Structure. Option for a Full Diagrid Roof with Ringbeam Edge support is subject to Capacity of Existing Building to receive Structural Load.



Image description

Sketch Axo

Image description


Basement Areas contain Public Services such as Washrooms , Cloakrooms, Storage etc. Limited Car Parking underground in existing Grounds. Potential Further Expansion Phase to the North of the Buildiing in Classical Layout.  New Public Plaza and Gardens to Riverfront with suggested Semicircular shaped Riverfront Walk to encircle Building. Emergency / Service vehicle access only to Riverfront.

Image description


1st Design Intention Diagrammatic Sketch

Image description
Image description
Image description
Image description

Internal Courtyard entirely re-imagined with alterations to Central Wings.


New Classical Colonnade with Gallery + Rooftop Dining space over.

Enhanced Classical Fenestration to entire Internal Courtyard surrounds.

Expansive Ground Floor Public Space with full view of Roof Structure.

Image description
Image description

Exemplary Precedents

Great Court at the British Museum


National Gallery Singapore

Image description
Image description
