Design Proposal for Corporate HQ

Image description

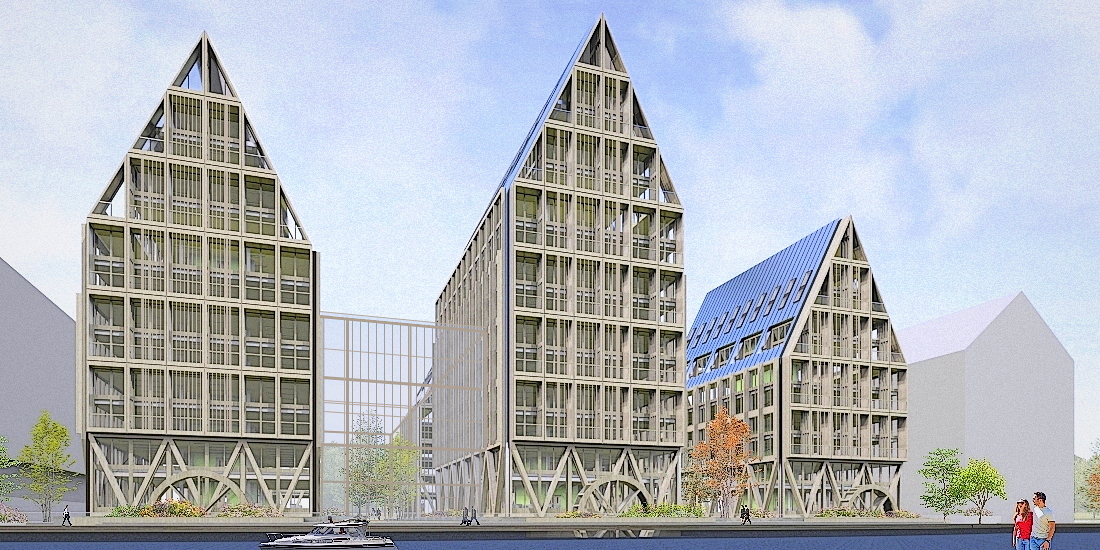

Design Proposal for a Waterfront Site

Office Campus with Optional Interspersed Atria.



Inherent Cost Efficiencies / Synergies for both Developer and Construction Contractor. Repetition of Forms  + Components, Scalability, Modularity, Constructability.


Pitched roofs, Asymmetrical Waterfront / Skyline Silhouette, Clarity of Expression

Iconic and Attractive Building Profile for Owners / End Users / Tenants

Examples of Potential Waterfront Sites                              Maps by Google

Image description
Image description

Location 1 : Dublin Bus Depot  : Grand Canal Dock - 3 Blocks of varying height

Location 2 : Waterford North Quays SDZ  - 2 / 3 Blocks of varying height

Image description
Image description

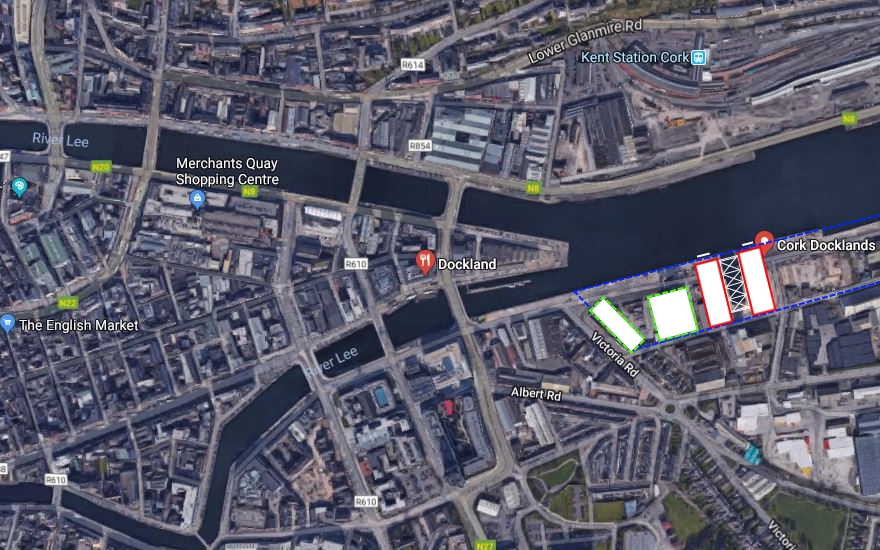

Location 3 : Cork South Docklands - Catalyst within Local Area Plan - 2 -3 Blocks

Location 4 : Cork North Docklands - 2 / 3 Blocks of Reduced Length + Varying Height

Image description

Location 5 : London - Waterfront Site : Thames / Greenwich Peninsula / Royal Docks etc


Image description

Brief note on Office Layout / Spec etc



Office Buildings circa 25m in width and based on a Structural Grid of 8x8m. The Overall length of the Buildings varies. The Gross Floor area of each Building is dependant on the number of Floor Levels. The Proposal offers Efficiencies in terms of Construction Economics in that the Buildings could be largely Identical with some variance.

Rooftop Plant is intended to be concealed by Apex Structures.


The Proposal could be for an Office Campus with Multi Tenancy or for occupation by a Single Large Multinational. Buildings may be linked by Atria or by Glazed Bridge Structures.


Image description

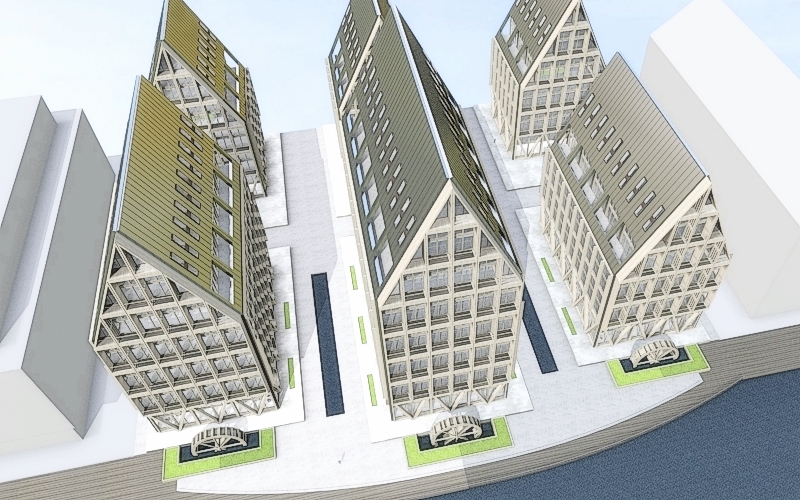

Aerial view of Waterfront - 2/3 Similar Office Buildiings of Varying Height up to 15 Storeys

Image description

Sketch CGI - Night. with Bronze Coloured Fenestration

Image description

Potential Atrium to Connect Buildings. Vessel Exibit is Illustrative


Image description

Potential Atrium between Office Blocks - Single or Multi Tenancy
