Projects / Urban Design / Central Park Phase 2/3



Client : Local Business Consortium


Design : D. Murphy / David Lawlor

Location : Carrick on Shannon, Leitrim





Project Backround


Commercial Phases of a Masterplan for a greenfield site in Carrick on Shannon town centre. Anchor Tenant Supermarket with ancillary retail at Ground Floor and 2 additional levels of Office space. Permission granted after protracted Planning Consultations.


Project Description


Scaled up Contemporary Vernacular Design treatment. Two Blocks are positioned so as to create a transition space between a Public Plaza and a secondary plaza to the west connecting in turn to Main Street via a series of archways.


There is provision for further Phases 4/5 by way of a new public road through the site. These Phases would comprise of the regeneration of the rear yards of existing Retail properties facing onto Main Street.


Materials employed are consistent with Phase 1 residential - natural stone, plaster, synthetic slate, zinc  and timber effect cladding to boxed windows. Area = circa 20,000m2


Image description
Image description

Phase 4 - Plaza + Connection to Main Street

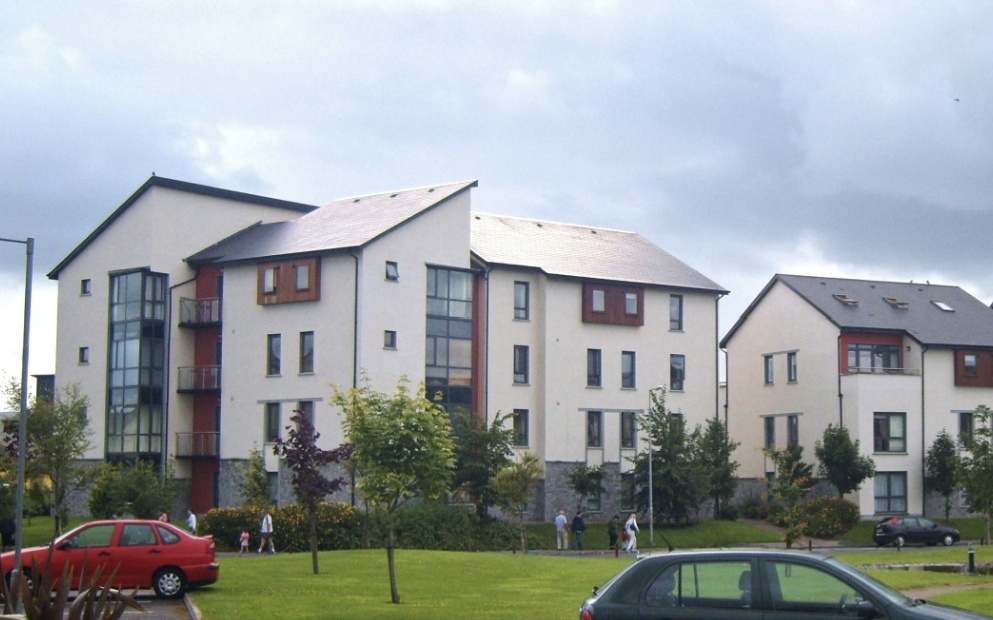

Apartment Units as Built


Image description
Image description

Apartment Units as Built


Masterplan Previously Granted Planning Permission - Phases 1 2 3


Image description
Image description

Phase 2 Offices +  Anchor Unit : Elevations  + Section


Apartments as Built


Image description
Image description

Phase 2 + 3 - Earlier Sketch Scheme


Apartment Block B - Forming new Street
